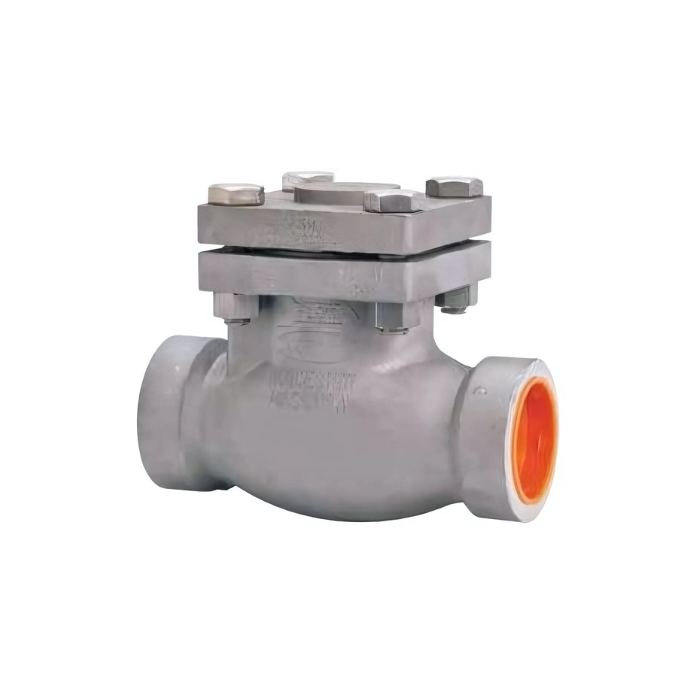

Valve Swing Check Stainless Steel Butt Weld 3" Grafoil Schedule 10

As low as $2367.04 each

Valve Swing Check Stainless Steel Butt Weld 3" Grafoil Schedule 10

• Can be installed and utilized from top
• Made to avoid cryo back flow
• High fluid capacity
• 316L stainless steel body/cap/arm
• ½” to 4” (15mm - 100mm)
• -325°F --> 150°F (-196°C --> +66°C)

S-0886GF-4S ½” 15 mm Socket Weld Soft 400 (26 Bar) 4.50 3 Lbs.

S-0886GF-6S ¾” 20 mm Soft 400 (26 Bar) 12.00 6 Lbs.

S-0886GF-8S 1” 25 mm Soft 400 (26 Bar) 61.00 11 Lbs.

S-0886GF-12S 1½” 40 mm Soft 400 (26 Bar) 99.00 17 Lbs.

S-000886-4S ½” 15 mm Socket Weld Soft 400 (26 Bar) 4.50 3 Lbs.

S-000886-6S ¾” 20 mm Soft 400 (26 Bar) 12.00 6 Lbs.

S-000886-8S 1” 25 mm Soft 400 (26 Bar) 61.00 11 Lbs.

S-000886-12S 1½” 40 mm Soft 400 (26 Bar) 99.00 17 Lbs.

S-000886-4WA ½” 15 mm Butt Weld Soft 10 400 (26 Bar) 4.50 3 Lbs.

S-000886-8WA 1” 25 mm 10 400 (26 Bar) 18.00 11 Lbs.

S-000886-12WA 1½” 40 mm 10 400 (26 Bar) 61.00 17 Lbs.

S-000886-16W3A 2” 50 mm 10 720 (50 Bar) 99.00 17 Lbs.

S-000886-24WA 3” 80 mm 10 275 (19 Bar) 255.00 47 Lbs.

S-000886-24WJ 3” 80 mm 40 275 (19 Bar) 225.00 46 Lbs.

S-000886-32W3J 4” 100 mm 40 720 (50 Bar) 475.00 95 Lbs.

S-000886-32WA 4” 100 mm 10 275 (19 Bar) 475.00 95 Lbs.

S-00886M-4S3 ½” 15 mm Socket Weld Metal 720 (50 Bar) 4.50 3 Lbs.

S-00886M-8S3 1” 25 mm 720 (50 Bar) 18.00 11 Lbs.

S-00886M-12S3 1½” 40 mm 720 (50 Bar) 61.00 17 Lbs.

S-0886M-16W3A 2” 50 mm Butt Weld Metal 10 720 (50 Bar) 99.00 17 Lbs.

S-00886M-24W3J 3” 80 mm 40 720 (50 Bar) 225.00 46 Lbs.

S-00886M-24W3A 3” 80 mm 10 720 (50 Bar) 225.00 46 Lbs.

S-00886M-32WA 4” 100 mm 10 275 (19 Bar) 475.00 95 Lbs.

S-00886M-32W3J 4” 100 mm Butt Weld 40 720 (50 Bar) 475.00 95 Lbs.

S-886MGF-16W3A 2” 50 mm Butt Weld Metal 10 720 (50 Bar) 99.00 17 Lbs.

S-886MGF-24W3A 3” 80 mm Butt Weld 10 720 (50 Bar) 225.00 46 Lbs.
