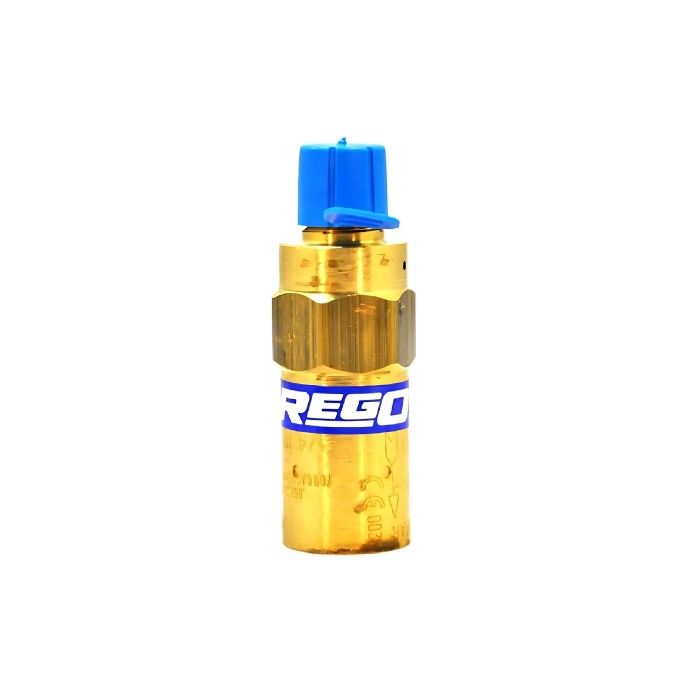

1/4" NPT Settings to 75 PSIG Fluorosilicone Seat - PRV9432F075

As low as $36.52 each!

SKU: PRV9432F075

1/4" NPT Settings to 75 PSIG Fluorosilicone Seat

Cryogenic Relief Valves

Liquid Relief Valves

SKU
PRV9432F075
$45.58
  • Buy 2 for $42.54 each and save 7%

As low as $36.52 each!

SKU: PRV9432F075

1/4" NPT Settings to 75 PSIG Fluorosilicone Seat

9400 series relief valves - designed for vapor line safety relief applications and cryogenic liquid containers.

Cleaned and packaged for oxygen service per CGA G-4.1

Bubble tight at 95% of set pressure

Color coded labels clearly identify pressure setting range

Tamper resistant

Adapters provide standard pipe thread connections for venting gas to the outdoors

Repeatable performance

100% factory tested

Temperature Range

(Teflon Seat) -320° to +165° F (-196ºC to +74ºC)

(Flurosilicone Seat) -60° to +165° F (-51ºC to +74ºC)

Rated for gas service only

In liquid service be sure to use with a candy cane riser (Sold Separately)

Setpoint tolerance ± 3%
